Me Me Manhole Hatch Cover
● Hom: marine manhole npog
● Khoom siv: steel, aluminium
● Txuj: CB/T 19-2001
● Daim ntawv pov thawj: ABS, CCS, BV, GL thiab lwm yam.
Hauj lwm lawm
Marine manhole npog yog qhov me me me me tuaj yeem ua los ntawm cov khoom siv txhuas lossis hlau. Nws yog siv rau watertight thiab oiltight manhole npog, ua raws li ISO 5894.
Muaj A, B, C, D hom manhole
Parameters:
Qauv: Ntev (mm): 450/600/800
Dav (mm): 350/400/600
Thickness: 8/10/12/15/19
Khoom siv: Aluminium: Hlau
Kev faib tawm: ABS, CCS, BV, GL thiab lwm yam.
Qauv: CB/T19-2001
Packing Paub meej:
Plywood pallet lossis Steel Structure nrog yas zaj duab xis qhwv. Max. 6sets ib pob.
Yeem qauv:
Muaj nyob rau hauv marine steel, stainless hlau thiab txhuas alloy, tooj liab cov ntaub ntawv

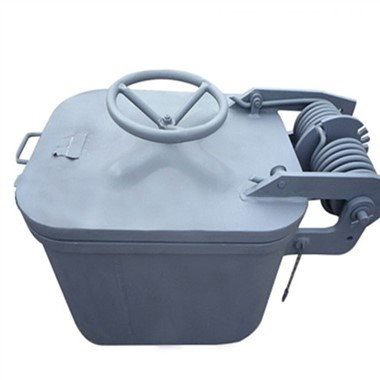

Hinged hom, Dej nruj / Huab cua nruj thiab Roj nruj marine manhole npog.
Embedded lossis Sunk Hom.
Smooth nto tsis tawg, hnav zoo thiab corrosion kuj, tsis xeb
Customize muaj
Kev pabcuam OEM thiab tshwj xeeb yuav tsum muaj
Loj loj
Unit: mm
Hom | Nominal loj | L1 | L2 | L3 | B1 | B2 | B3 | S | Bolt | |
A,B | L * B (hli) | Txoj kab uas hla | Ntau | |||||||
450*350 | 450 | 470 | 570 | 350 | 370 | 470 | 4,6,8,10 | M20 | 16 | |
600*400 | 600 | 620 | 720 | 400 | 420 | 520 | 6,8,10,12 | 20 | ||
800*600 | 800 | 820 | 920 | 600 | 620 | 720 | 8,10,12,14 | 26 | ||
B | 800*400 | 800 | 830 | 930 | 400 | 430 | 530 | 12,14,16,18 | 24 | |
Rau lwm hom thov hu rau peb
Hom A
Hom B
Hom C
Hom D
