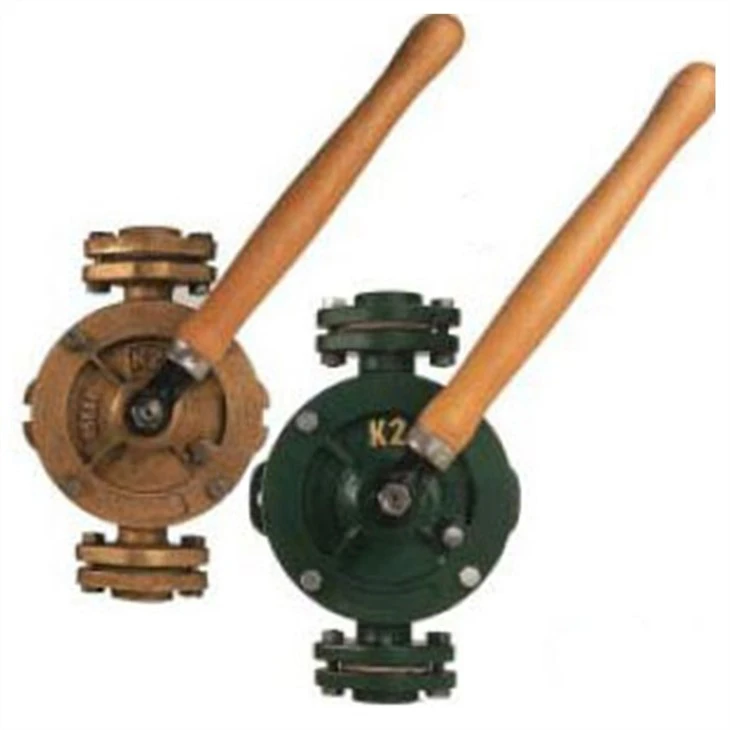

1 Nti Diesel Roj Tes Pump
● Series: K
● Hom: semi-rotary tes twj tso kua mis
● Muaj peev xwm: 11.5 ~ 90l / min
● Rau dej, diesel, roj
Hauj lwm lawm
Cov k series yog cov tsoos cam khwb cia hlau, semi-rotary, tes-twj. Muab nrog kev khiav hauj lwm kov thiab ntsia hlau mating flanges, lawv yog ntau yam twj tso kua mis haum rau dej, roj av, diesel, roj, lubricants, cawv, thiab tsis corrosive kuab tshuaj. Qhov siab tshaj plaws suction nqa, nrog ko taw valve yog 4 meters. Yuav ua tau phab ntsa mounted, mus tas li ntsia los yog haum rau lub tank los yog chim.
Parameter
Qauv | Inlet | Qhov hluav taws xob | Kev khiav dej num (l / min) | Suction nqa (mtrs) | Lub taub hau (mtrs) | Qhov hnyav (kgs) |
K-00 | 3/8 nti | 3/8 nti | 7.5 | 6 | 25 | 3.2 |
K-0 | 1/2 nti | 1/2 nti | 11.5 | 6 | 25 | 5.1 |
K-1 | 3/4 nti | 3/4 nti | 17.25 | 6 | 25 | 6.1 |
K-2 | 1 nti | 1 nti | 22.5 | 6 | 25 | 8.8 |
K-3 | 1-1/4 nti | 1-1/4 nti | 29 | 6 | 22 | 11.5 |
K-4 | 1-1/4 nti | 1-1/4 nti | 43.25 | 6 | 22 | 12.6 |
K-5 | 1-1/2 nti | 1-1/2 nti | 53.5 | 6 | 20 | 16 |
K-7 | 2 nti | 2 nti | 90 | 6 | 15 | 32 |
Cim npe nrov: 1 nti diesel roj tes twj tso kua mis, Tuam Tshoj, lwm tus neeg, customized, pheej yig
